Bakersfield Quality Fences Automatic gate systems add security, convenience, and property value to both residential driveways and commercial entrances. A gate that opens with a keypad, remote, or vehicle sensor eliminates the daily task of manually opening and closing the entry point — which matters on a driveway you use multiple times a day. We install swing gate operators, slide gate systems, and access control hardware for residential and commercial properties throughout Kern County.
Automatic gate systems only work reliably when the gate itself is in good mechanical condition and the operator is correctly sized for the gate. We assess both before recommending any system. Call or submit a quote request and we will evaluate your gate and discuss the options.
Automatic Gate System Installation in Bakersfield, CA
The reliability of an automatic gate system is determined almost entirely by how well it is specified and installed. An undersized operator on a heavy gate burns out quickly. A gate that binds or sags manually will destroy an electric operator even faster. We start every automatic gate project by assessing the existing or proposed gate for mechanical soundness — correct post alignment, proper gate weight distribution, and smooth manual operation — before sizing and specifying any operator.
Bakersfield's heat creates specific considerations for automatic gate systems. Operators mounted in direct sun reach temperatures that can reduce motor life and affect electronic control reliability. We select operator locations and enclosures that minimize direct solar exposure and specify equipment with thermal protection features appropriate for Central Valley conditions. Battery backup systems are recommended for all installations given the occasional power outages during peak summer demand.
Residential Swing Gate Operators
Residential driveway swing gate automation uses linear actuator or articulated arm operators mounted to the gate post and gate frame. We select operators based on gate weight, leaf width, and expected daily cycle count. Most residential applications use operators in the 300 to 500 cycle-per-day range — adequate for typical household use. For properties with higher traffic, we specify commercial-duty operators with heavier-duty motors and longer service intervals.

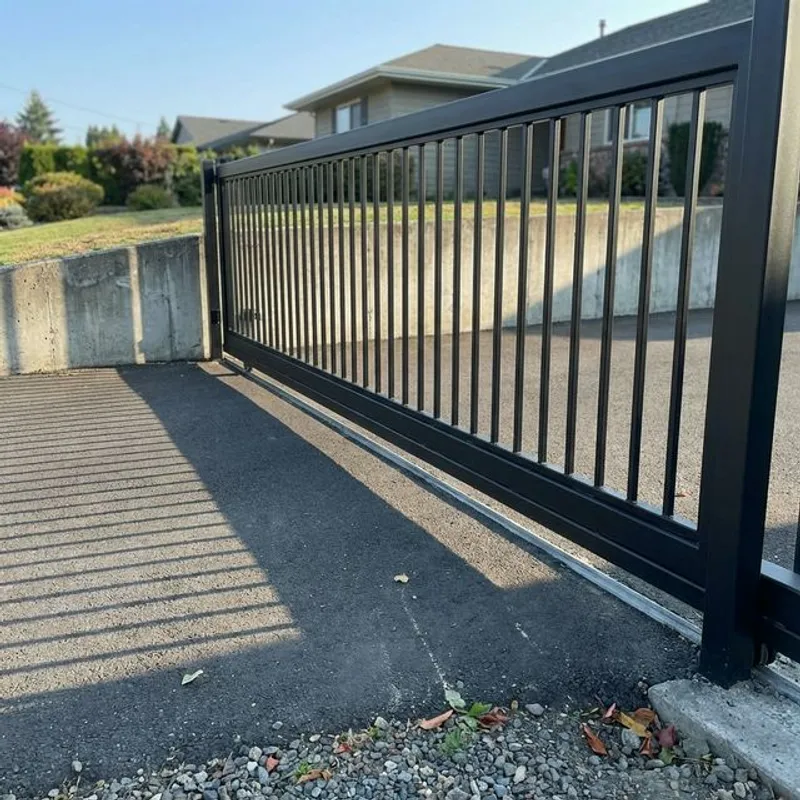

Slide and Cantilever Gate Systems

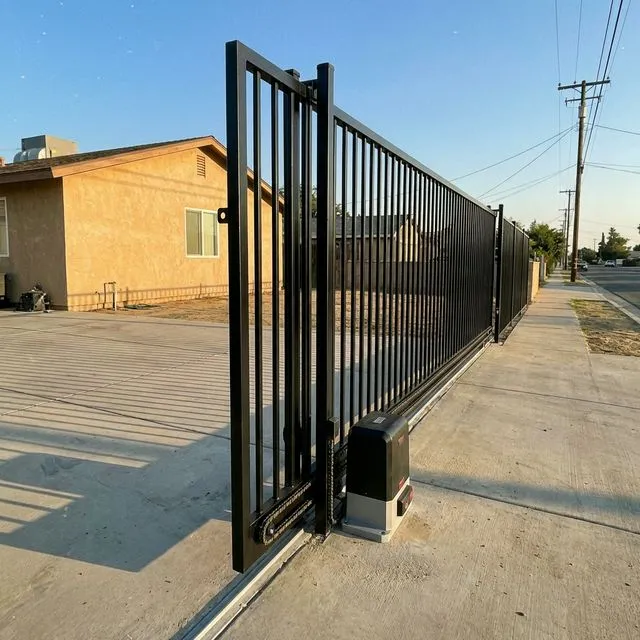

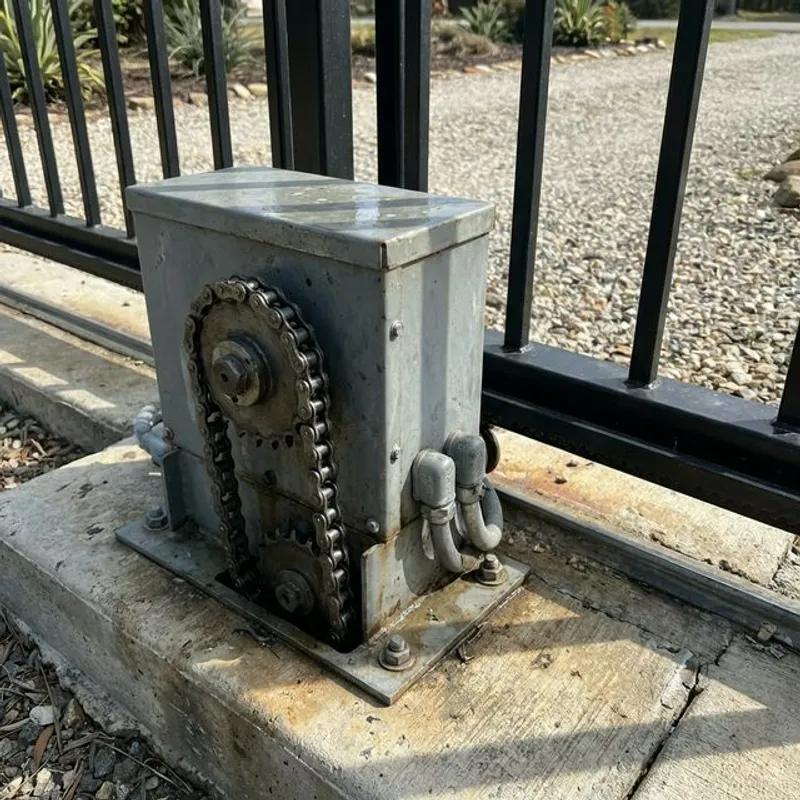

Slide gate operators drive a rack-and-pinion or chain system that rolls the gate along a track or, for cantilever gates, suspends it off the ground on rollers. Slide gates are the preferred solution for driveways where swing clearance is limited, sloped driveways where a swing gate would drag, or commercial entrances with high traffic volume. Cantilever systems eliminate the ground track that collects debris and can be disrupted by vehicle contact, making them more reliable in high-use settings.
Access Control Integration
Keypads, remote transmitters, vehicle loop detectors, intercom systems, and smartphone-connected access controllers can all be integrated with automatic gate operators. We install the access control devices that match your security and convenience requirements — a simple keypad and two remotes for a residential gate, or a full keypads-plus-loop-detector setup for a commercial entrance that needs to log entry events and support multiple access credentials.
Why Bakersfield Quality Fences for Automatic Gate Systems
Automatic gate systems fail in predictable ways when they are mis-specified or poorly installed. Here is how we prevent those failures.
Gate Assessment Before Automation
We inspect every gate for mechanical soundness before installing an operator. A gate with worn hinges, a racked frame, or a leaning post will fail the operator quickly. If the gate needs repairs first, we do them before any automation hardware goes on — it saves the client money and frustration in the long run.
Correct Operator Sizing
Operators are rated by gate weight and daily cycle count. Residential operators used on commercial-traffic gates burn out prematurely. We calculate the gate weight and anticipated use frequency accurately and specify operators with an appropriate duty-cycle margin above the expected load.
Safety Device Installation
UL safety standards require photo-eye obstruction sensors on automatic gates. We install and correctly calibrate these sensors as standard on every automatic gate project. Poorly calibrated safety devices — either too sensitive or not sensitive enough — are a common source of nuisance trips and safety incidents on self-installed or budget-installed systems.
Owner Training and Documentation
Every automatic gate system has a manual release mechanism for power outages and a programming interface for access credentials. We walk through both with the property owner before leaving and provide documentation of the operator model, access code programming procedure, and service contact information.
Battery Backup Systems
Power outages in Bakersfield during peak summer are infrequent but real. An automatic gate without battery backup leaves you either locked in or locked out during an outage. We install battery backup modules as a standard recommendation on residential gates and a requirement on commercial gates where access cannot be interrupted. Most systems provide 50 to 100 cycles of backup operation on a fully charged battery.
Operator Repair and Replacement
Existing automatic gate operators that have failed or are operating erratically can often be repaired with control board replacement, motor service, or limit switch adjustment before full operator replacement is necessary. We diagnose the specific failure point before recommending replacement. When full operator replacement is warranted, we can typically swap in a new unit on an existing gate without replacing the gate itself.
Commercial Access Control Systems
Commercial properties require access control that goes beyond a simple keypad — multiple credentials, entry logging, remote management, and integration with other security systems. We install commercial-grade access controllers with keypad, card reader, and remote management options. For facilities that need video verification at the gate, we can coordinate intercom and camera installation alongside the gate automation.
Automatic Gate System Installation Process
Gate and Site Assessment
We assess the existing gate or proposed gate location, measuring gate weight, leaf width, post condition, and available power source location. For swing gates, we confirm the hinge condition and gate frame rigidity. For slide gates, we assess the track run and surface conditions. This assessment drives the operator selection and installation plan.
Operator and Hardware Selection
We specify the operator model, access control devices, safety equipment, and backup power based on the assessment findings and the client's access requirements. For commercial installations, we provide a written specification for approval before ordering. We discuss the pros and cons of each access control option — keypad, remote, loop detector, smartphone app — so the client selects based on how they actually use the gate.

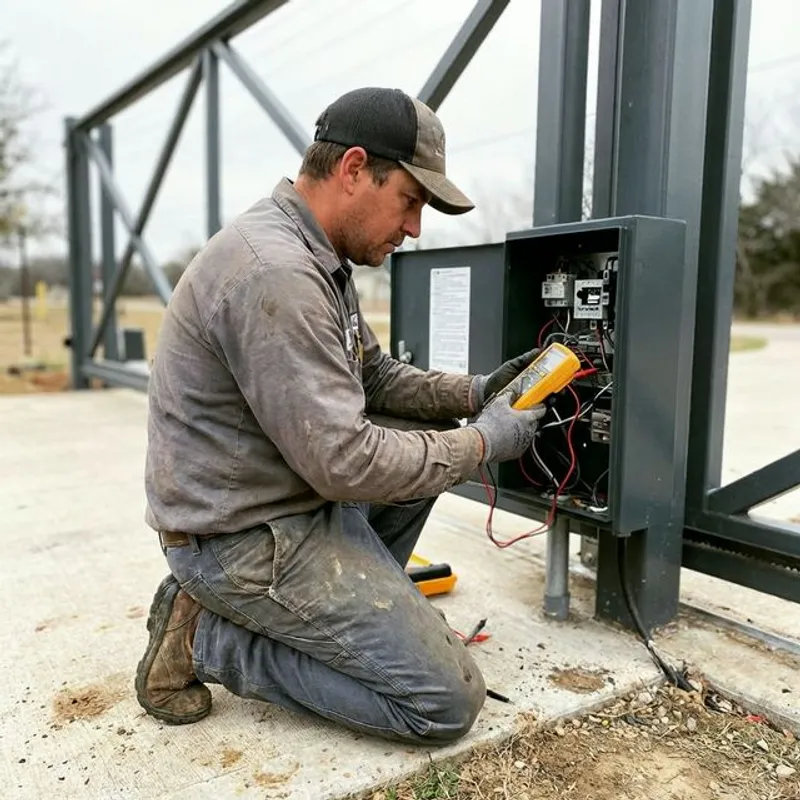

Installation and Wiring
The operator is mounted to the gate post and gate frame, power is connected from the nearest available source with appropriate conduit and disconnects, and safety devices are positioned per UL standards. Control wiring is run in conduit to protect it from UV degradation and physical damage. Access control devices are mounted at appropriate heights and locations for the intended users.
Programming and Testing
The operator is programmed for correct limit positions — the fully open and fully closed stops — and force settings appropriate for the gate weight. Access credentials are programmed into the controller and tested. Safety devices are tested for correct obstruction detection. We cycle the gate 20 to 30 times and verify consistent operation before completing the owner walkthrough.
